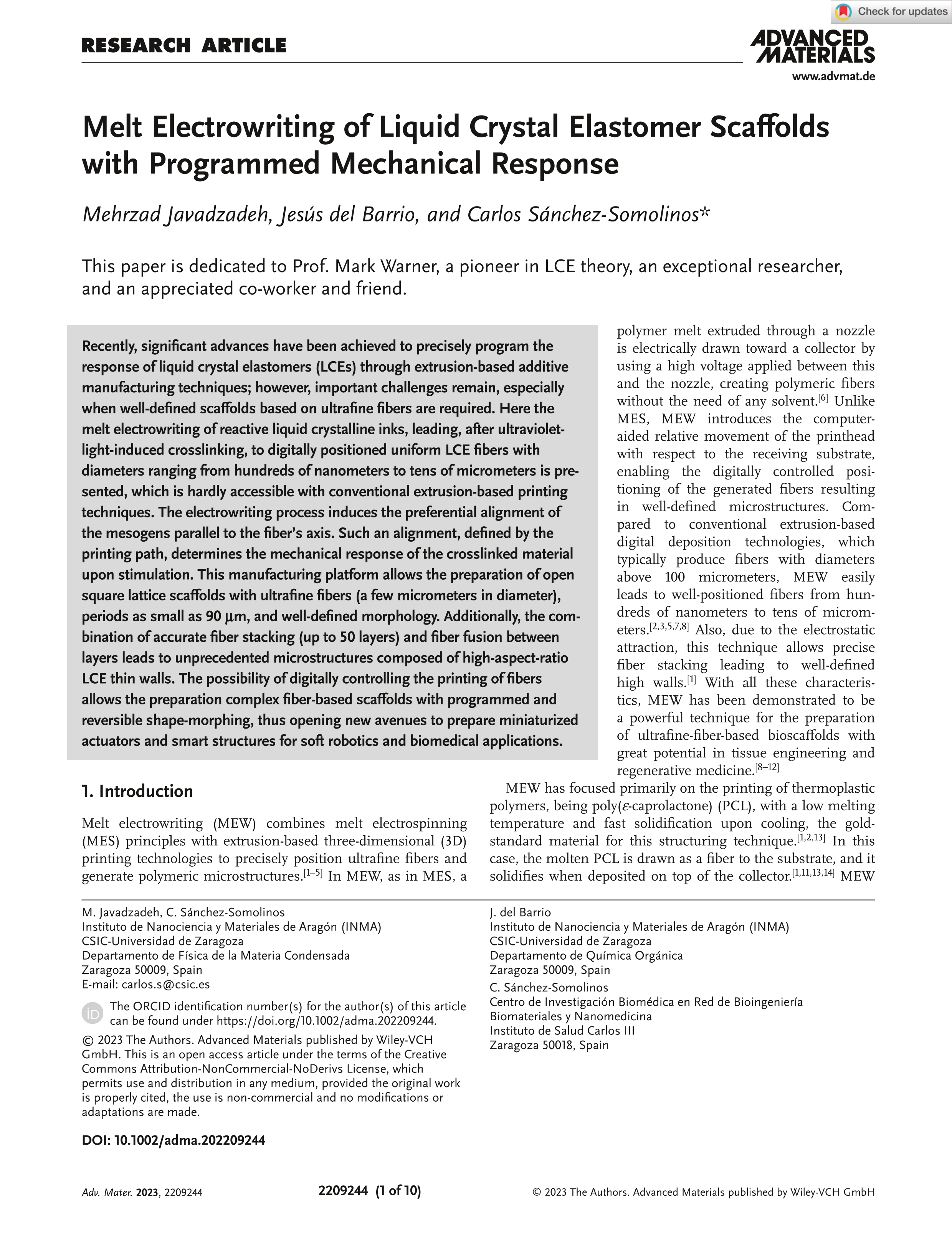

Melt electrowriting of liquid crystal elastomer scaffolds with programmed mechanical response

Javadzadeh, Mehrzad ; del Barrio, Jesús (Universidad de Zaragoza) ; Sánchez-Somolinos, Carlos

Resumen: Recently, significant advances have been achieved to precisely program the response of liquid crystal elastomers (LCEs) through extrusion-based additive manufacturing techniques; however, important challenges remain, especially when well-defined scaffolds based on ultrafine fibers are required. Here the melt electrowriting of reactive liquid crystalline inks, leading, after ultraviolet-light-induced crosslinking, to digitally positioned uniform LCE fibers with diameters ranging from hundreds of nanometers to tens of micrometers is presented, which is hardly accessible with conventional extrusion-based printing techniques. The electrowriting process induces the preferential alignment of the mesogens parallel to the fiber's axis. Such an alignment, defined by the printing path, determines the mechanical response of the crosslinked material upon stimulation. This manufacturing platform allows the preparation of open square lattice scaffolds with ultrafine fibers (a few micrometers in diameter), periods as small as 90 µm, and well-defined morphology. Additionally, the combination of accurate fiber stacking (up to 50 layers) and fiber fusion between layers leads to unprecedented microstructures composed of high-aspect-ratio LCE thin walls. The possibility of digitally controlling the printing of fibers allows the preparation complex fiber-based scaffolds with programmed and reversible shape-morphing, thus opening new avenues to prepare miniaturized actuators and smart structures for soft robotics and biomedical applications.

Idioma: Inglés

DOI: 10.1002/adma.202209244

Año: 2023

Publicado en: Advanced materials 35, 14 (2023), 2209244 [10 pp.]
ISSN: 0935-9648

Factor impacto JCR: 27.4 (2023)

Categ. JCR: CHEMISTRY, PHYSICAL rank: 4 / 178 = 0.022 (2023) - Q1 - T1
Categ. JCR: MATERIALS SCIENCE, MULTIDISCIPLINARY rank: 11 / 439 = 0.025 (2023) - Q1 - T1
Categ. JCR: NANOSCIENCE & NANOTECHNOLOGY rank: 4 / 141 = 0.028 (2023) - Q1 - T1
Categ. JCR: PHYSICS, CONDENSED MATTER rank: 3 / 79 = 0.038 (2023) - Q1 - T1
Categ. JCR: CHEMISTRY, MULTIDISCIPLINARY rank: 5 / 231 = 0.022 (2023) - Q1 - T1
Categ. JCR: PHYSICS, APPLIED rank: 6 / 179 = 0.034 (2023) - Q1 - T1

Factor impacto CITESCORE: 43.0 - Mechanical Engineering (Q1) - Materials Science (all) (Q1) - Mechanics of Materials (Q1)

Factor impacto SCIMAGO: 9.191 - Materials Science (miscellaneous) (Q1) - Nanoscience and Nanotechnology (Q1) - Mechanics of Materials (Q1) - Mechanical Engineering (Q1)

Financiación: info:eu-repo/grantAgreement/ES/DGA-FEDER/E47-20R
Financiación: info:eu-repo/grantAgreement/ES/DGA-FEDER/LMP221_21
Financiación: info:eu-repo/grantAgreement/EC/H2020/829010/EU/Advanced and versatile PRInting platform for the next generation of active Microfluidic dEvices/PRIME
Financiación: info:eu-repo/grantAgreement/ES/ISCIII/CB06-01/00263
Financiación: info:eu-repo/grantAgreement/ES/MICINN/CTQ2017-84087-R
Financiación: info:eu-repo/grantAgreement/ES/MICINN/PID2020-118485RB-I00
Financiación: info:eu-repo/grantAgreement/ES/MINECO/BIO2017-84246-C2-1-R
Financiación: info:eu-repo/grantAgreement/ES/MINECO/CTQ2017-84087-R
Financiación: info:eu-repo/grantAgreement/ES/MINECO-FSE-FEDER/RYC-2015-18471

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Química Orgánica (Dpto. Química Orgánica)
