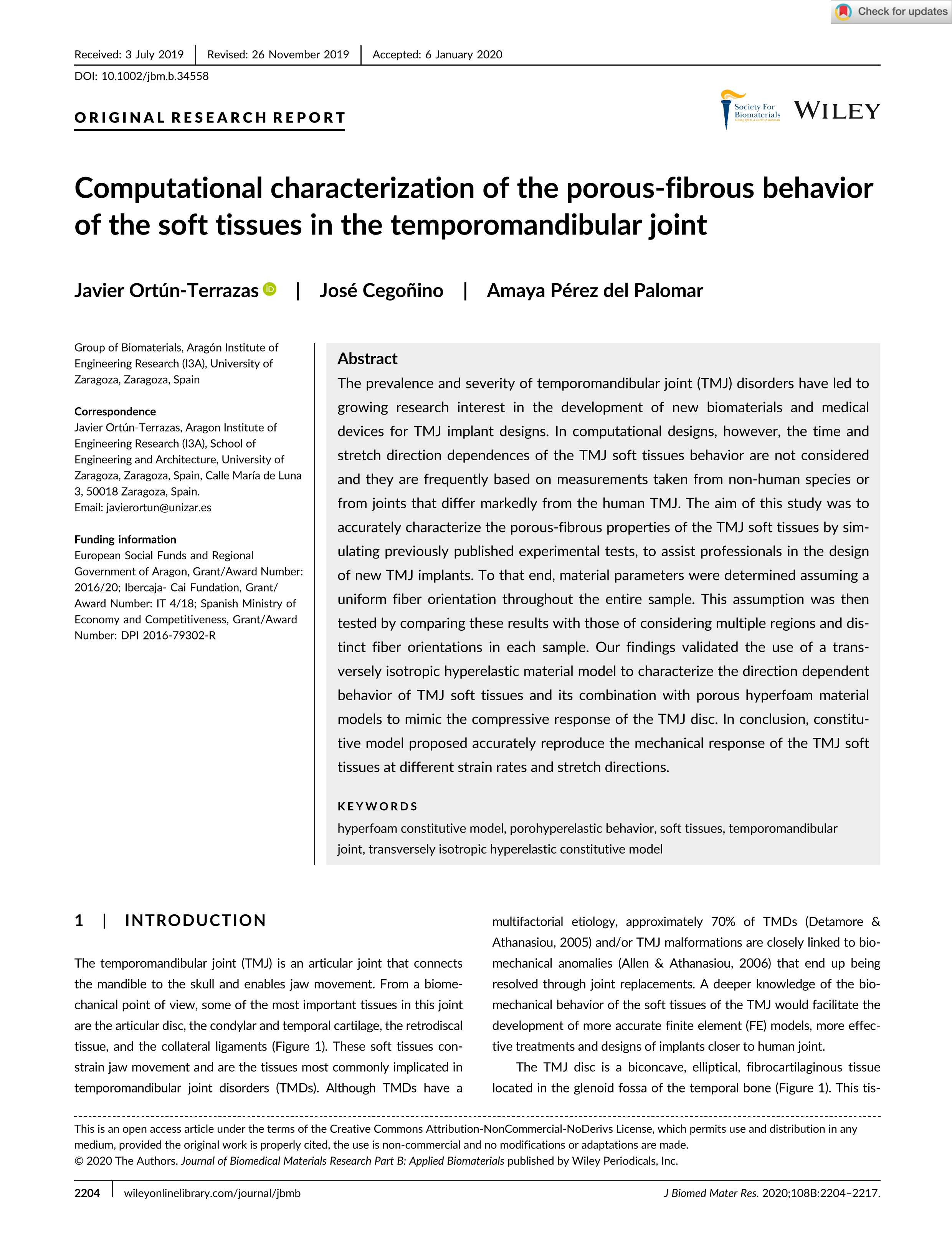

Computational characterization of the porous-fibrous behavior of the soft tissues in the temporomandibular joint

Ortún-Terrazas, J. (Universidad de Zaragoza) ; Cegoñino, J. (Universidad de Zaragoza) ; Pérez del Palomar, A. (Universidad de Zaragoza)

Resumen: The prevalence and severity of temporomandibular joint (TMJ) disorders have led to growing research interest in the development of new biomaterials and medical devices for TMJ implant designs. In computational designs, however, the time and stretch direction dependences of the TMJ soft tissues behavior are not considered and they are frequently based on measurements taken from non-human species or from joints that differ markedly from the human TMJ. The aim of this study was to accurately characterize the porous-fibrous properties of the TMJ soft tissues by simulating previously published experimental tests, to assist professionals in the design of new TMJ implants. To that end, material parameters were determined assuming a uniform fiber orientation throughout the entire sample. This assumption was then tested by comparing these results with those of considering multiple regions and distinct fiber orientations in each sample. Our findings validated the use of a transversely isotropic hyperelastic material model to characterize the direction dependent behavior of TMJ soft tissues and its combination with porous hyperfoam material models to mimic the compressive response of the TMJ disc. In conclusion, constitutive model proposed accurately reproduce the mechanical response of the TMJ soft tissues at different strain rates and stretch directions.

Idioma: Inglés

DOI: 10.1002/jbm.b.34558

Año: 2020

Publicado en: Journal of Biomedical Materials Research - Part B Applied Biomaterials 108 , 8 (2020), 2204-2217
ISSN: 1552-4973

Originalmente disponible en: Texto completo de la revista

Factor impacto JCR: 3.368 (2020)

Categ. JCR: ENGINEERING, BIOMEDICAL rank: 43 / 89 = 0.483 (2020) - Q2 - T2
Categ. JCR: MATERIALS SCIENCE, BIOMATERIALS rank: 26 / 40 = 0.65 (2020) - Q3 - T2

Factor impacto SCIMAGO: 0.665 - Biomedical Engineering (Q2) - Biomaterials (Q2)

Financiación: info:eu-repo/grantAgreement/ES/CIBER-Ibercaja-CAI/IT 4-18
Financiación: info:eu-repo/grantAgreement/ES/MINECO/DPI2016-79302-R

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Mec.Med.Cont. y Teor.Est. (Dpto. Ingeniería Mecánica)
