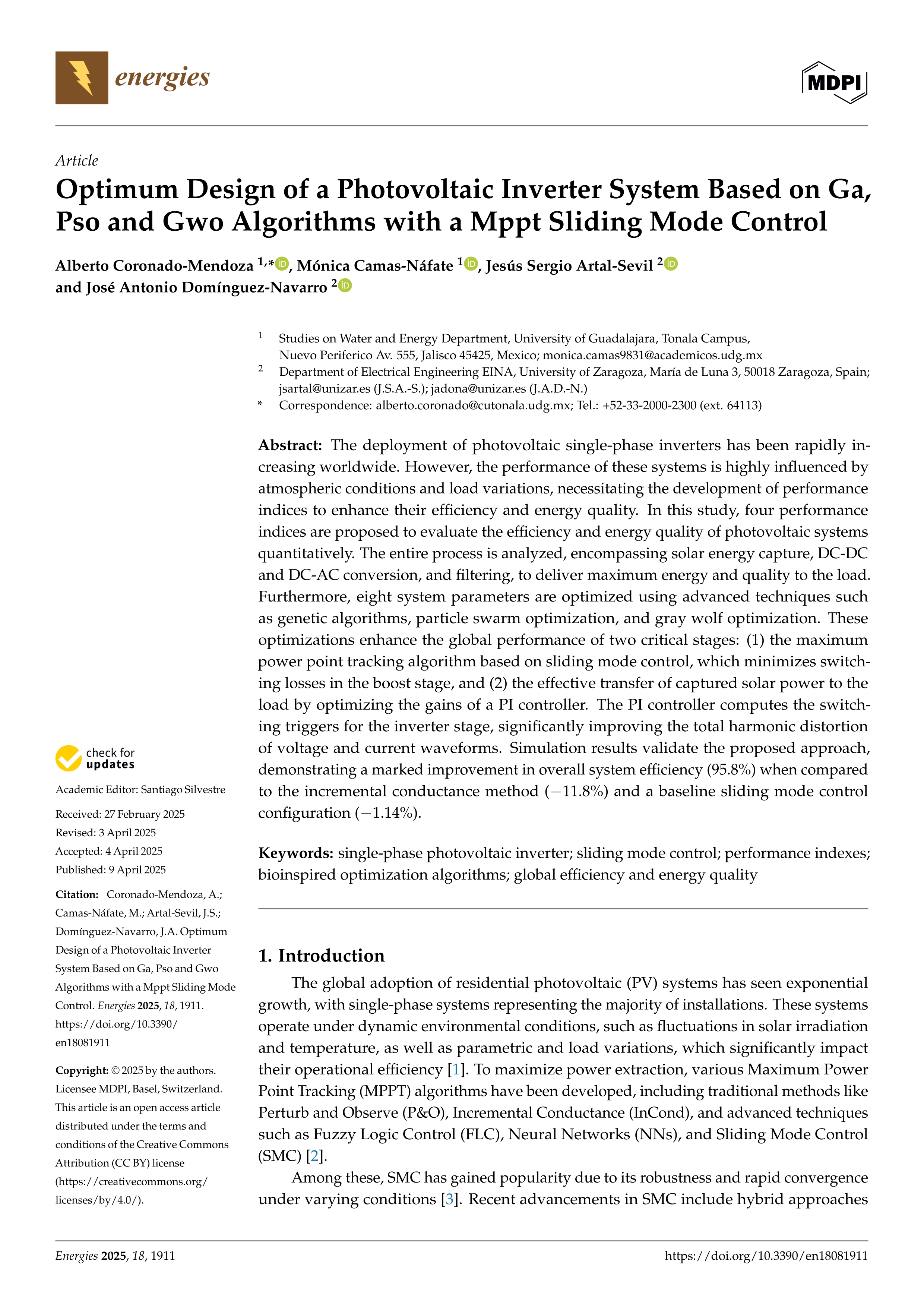

Optimum Design of a Photovoltaic Inverter System Based on Ga, Pso and Gwo Algorithms with a Mppt Sliding Mode Control

Coronado-Mendoza, Alberto ; Camas-Náfate, Mónica ; Artal-Sevil, Jesús Sergio (Universidad de Zaragoza) ; Domínguez-Navarro, José Antonio (Universidad de Zaragoza)

Resumen: The deployment of photovoltaic single-phase inverters has been rapidly increasing worldwide. However, the performance of these systems is highly influenced by atmospheric conditions and load variations, necessitating the development of performance indices to enhance their efficiency and energy quality. In this study, four performance indices are proposed to evaluate the efficiency and energy quality of photovoltaic systems quantitatively. The entire process is analyzed, encompassing solar energy capture, DC-DC and DC-AC conversion, and filtering, to deliver maximum energy and quality to the load. Furthermore, eight system parameters are optimized using advanced techniques such as genetic algorithms, particle swarm optimization, and gray wolf optimization. These optimizations enhance the global performance of two critical stages: (1) the maximum power point tracking algorithm based on sliding mode control, which minimizes switching losses in the boost stage, and (2) the effective transfer of captured solar power to the load by optimizing the gains of a PI controller. The PI controller computes the switching triggers for the inverter stage, significantly improving the total harmonic distortion of voltage and current waveforms. Simulation results validate the proposed approach, demonstrating a marked improvement in overall system efficiency (95.8%) when compared to the incremental conductance method (−11.8%) and a baseline sliding mode control configuration (−1.14%).

Idioma: Inglés

DOI: 10.3390/en18081911

Año: 2025

Publicado en: Energies 18, 8 (2025), 1911 [16 pp.]
ISSN: 1996-1073

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Ingeniería Eléctrica (Dpto. Ingeniería Eléctrica)
