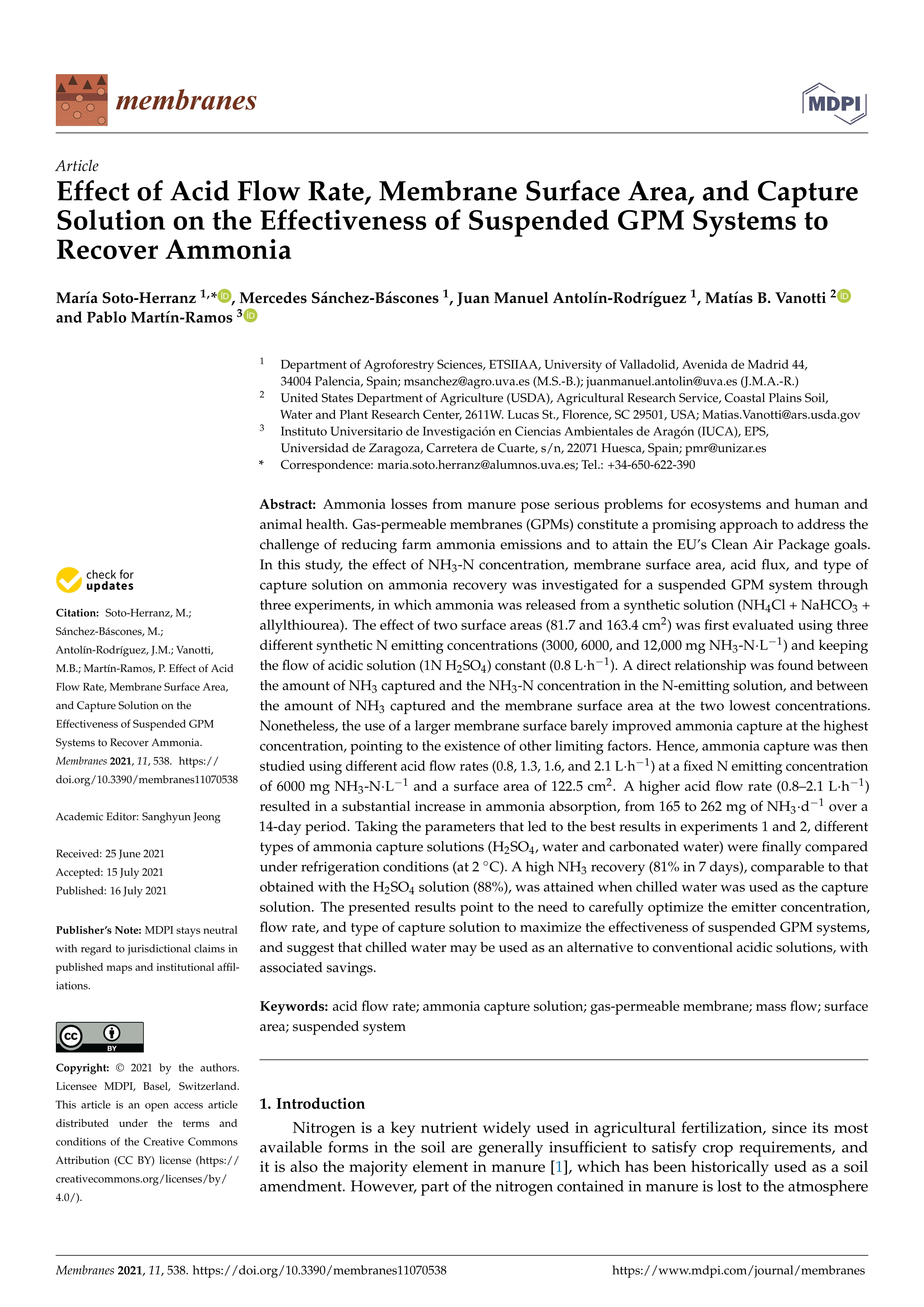

Effect of acid flow rate, membrane surface area, and capture solution on the effectiveness of suspended GPM systems to recover ammonia

Soto Herranz, María ; Sánchez Báscones, Mercedes ; Antolín Rodríguez, Juan Manuel ; Vanotti, Matias B. ; Martín Ramos, Pablo (Universidad de Zaragoza)

Resumen: Ammonia losses from manure pose serious problems for ecosystems and human and animal health. Gas-permeable membranes (GPMs) constitute a promising approach to address the challenge of reducing farm ammonia emissions and to attain the EU’s Clean Air Package goals. In this study, the effect of NH3-N concentration, membrane surface area, acid flux, and type of capture solution on ammonia recovery was investigated for a suspended GPM system through three experiments, in which ammonia was released from a synthetic solution (NH4Cl + NaHCO3 + allylthiourea). The effect of two surface areas (81.7 and 163.4 cm2) was first evaluated using three different synthetic N emitting concentrations (3000, 6000, and 12,000 mg NH3-N∙L−1) and keeping the flow of acidic solution (1N H2SO4) constant (0.8 L·h−1). A direct relationship was found between the amount of NH3 captured and the NH3-N concentration in the N-emitting solution, and between the amount of NH3 captured and the membrane surface area at the two lowest concentrations. Nonetheless, the use of a larger membrane surface barely improved ammonia capture at the highest concentration, pointing to the existence of other limiting factors. Hence, ammonia capture was then studied using different acid flow rates (0.8, 1.3, 1.6, and 2.1 L∙h−1) at a fixed N emitting concentration of 6000 mg NH3-N∙L−1 and a surface area of 122.5 cm2. A higher acid flow rate (0.8–2.1 L∙h−1) resulted in a substantial increase in ammonia absorption, from 165 to 262 mg of NH3∙d−1 over a 14-day period. Taking the parameters that led to the best results in experiments 1 and 2, different types of ammonia capture solutions (H2SO4, water and carbonated water) were finally compared under refrigeration conditions (at 2 °C). A high NH3 recovery (81% in 7 days), comparable to that obtained with the H2SO4 solution (88%), was attained when chilled water was used as the capture solution. The presented results point to the need to carefully optimize the emitter concentration, flow rate, and type of capture solution to maximize the effectiveness of suspended GPM systems, and suggest that chilled water may be used as an alternative to conventional acidic solutions, with associated savings.

Idioma: Inglés

DOI: 10.3390/membranes11070538

Año: 2021

Publicado en: Membranes 11, 7 (2021), [12 pp.]
ISSN: 2077-0375

Factor impacto JCR: 4.562 (2021)

Categ. JCR: POLYMER SCIENCE rank: 21 / 90 = 0.233 (2021) - Q1 - T1
Categ. JCR: MATERIALS SCIENCE, MULTIDISCIPLINARY rank: 132 / 345 = 0.383 (2021) - Q2 - T2
Categ. JCR: CHEMISTRY, PHYSICAL rank: 69 / 165 = 0.418 (2021) - Q2 - T2
Categ. JCR: ENGINEERING, CHEMICAL rank: 47 / 143 = 0.329 (2021) - Q2 - T1

Factor impacto CITESCORE: 3.7 - Chemical Engineering (Q2)

Factor impacto SCIMAGO: 0.517 - Process Chemistry and Technology (Q2) - Chemical Engineering (miscellaneous) (Q2)

Financiación: info:eu-repo/grantAgreement/EC/ENV-LIFE 2/000284/EU/Creation of an information structure for urban and environmental planning and management in the municipalities, with a projection to the media

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Area Ingeniería Agroforestal (Dpto. CC.Agrar.y Medio Natural)
