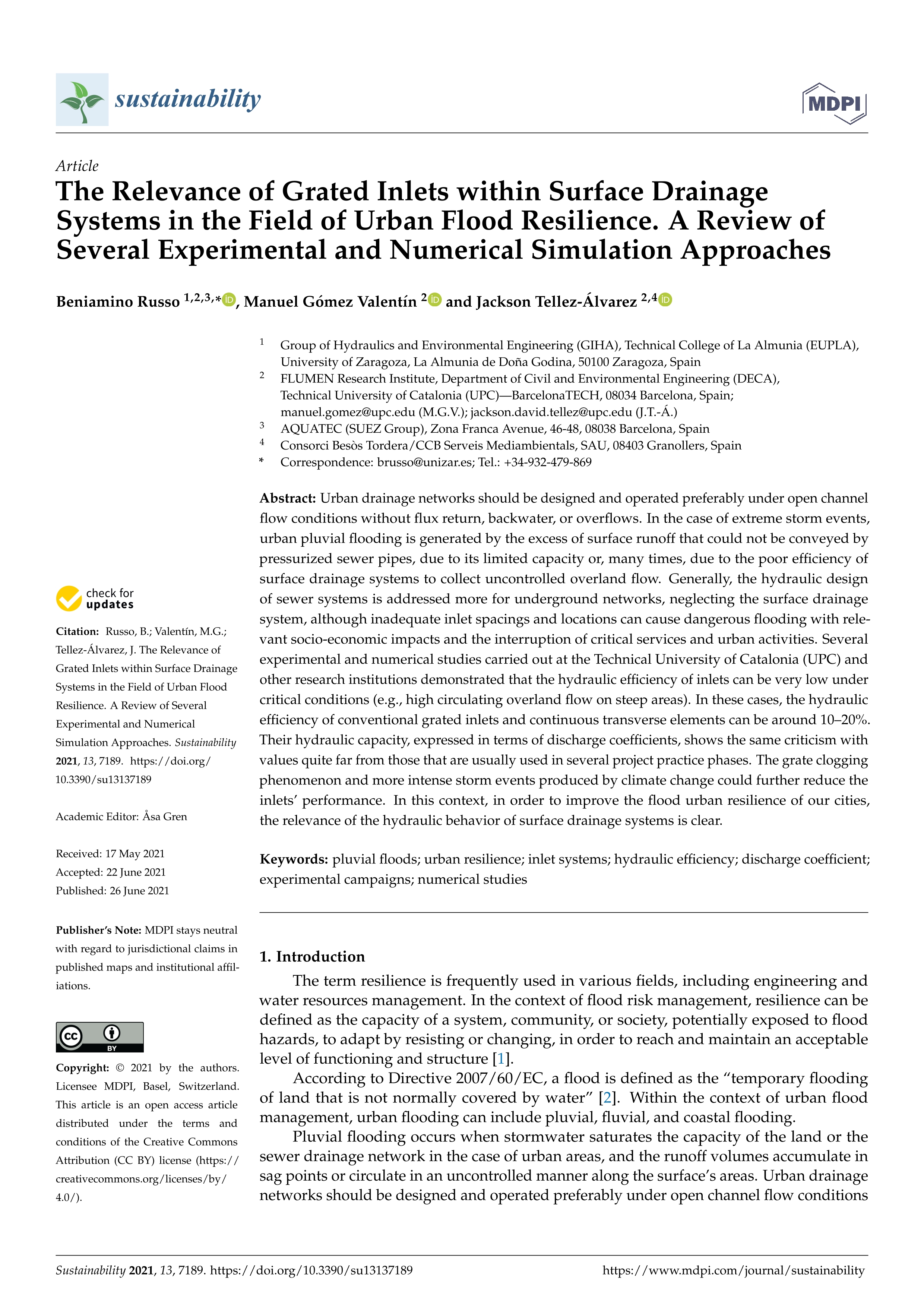

The relevance of grated inlets within surface drainage systems in the field of urban flood resilience. A review of several experimental and numerical simulation approaches

Russo, B. ; Gómez Valentín, M. ; Tellez-Álvarez, J.

Resumen: Urban drainage networks should be designed and operated preferably under open channel flow conditions without flux return, backwater, or overflows. In the case of extreme storm events, urban pluvial flooding is generated by the excess of surface runoff that could not be conveyed by pressurized sewer pipes, due to its limited capacity or, many times, due to the poor efficiency of surface drainage systems to collect uncontrolled overland flow. Generally, the hydraulic design of sewer systems is addressed more for underground networks, neglecting the surface drainage system, although inadequate inlet spacings and locations can cause dangerous flooding with rele-vant socio-economic impacts and the interruption of critical services and urban activities. Several experimental and numerical studies carried out at the Technical University of Catalonia (UPC) and other research institutions demonstrated that the hydraulic efficiency of inlets can be very low under critical conditions (e.g., high circulating overland flow on steep areas). In these cases, the hydraulic efficiency of conventional grated inlets and continuous transverse elements can be around 10–20%. Their hydraulic capacity, expressed in terms of discharge coefficients, shows the same criticism with values quite far from those that are usually used in several project practice phases. The grate clogging phenomenon and more intense storm events produced by climate change could further reduce the inlets’ performance. In this context, in order to improve the flood urban resilience of our cities, the relevance of the hydraulic behavior of surface drainage systems is clear.

Idioma: Inglés

DOI: 10.3390/su13137189

Año: 2021

Publicado en: Sustainability (Switzerland) 13, 13 (2021), 13137189[13 pp]
ISSN: 2071-1050

Factor impacto JCR: 3.889 (2021)

Categ. JCR: ENVIRONMENTAL STUDIES rank: 57 / 128 = 0.445 (2021) - Q2 - T2
Categ. JCR: ENVIRONMENTAL SCIENCES rank: 133 / 279 = 0.477 (2021) - Q2 - T2
Categ. JCR: GREEN & SUSTAINABLE SCIENCE & TECHNOLOGY rank: 35 / 47 = 0.745 (2021) - Q3 - T3
Categ. JCR: GREEN & SUSTAINABLE SCIENCE & TECHNOLOGY rank: 7 / 9 = 0.778 (2021) - Q4 - T3

Factor impacto CITESCORE: 5.0 - Social Sciences (Q1) - Engineering (Q1) - Energy (Q2) - Environmental Science (Q2)

Factor impacto SCIMAGO: 0.664 - Energy Engineering and Power Technology (Q1) - Renewable Energy, Sustainability and the Environment (Q1) - Management, Monitoring, Policy and Law (Q1) - Geography, Planning and Development (Q1)

Financiación: info:eu-repo/grantAgreement/ES/MINECO/CGL2011-26958

Tipo y forma: Artículo (Versión definitiva)
