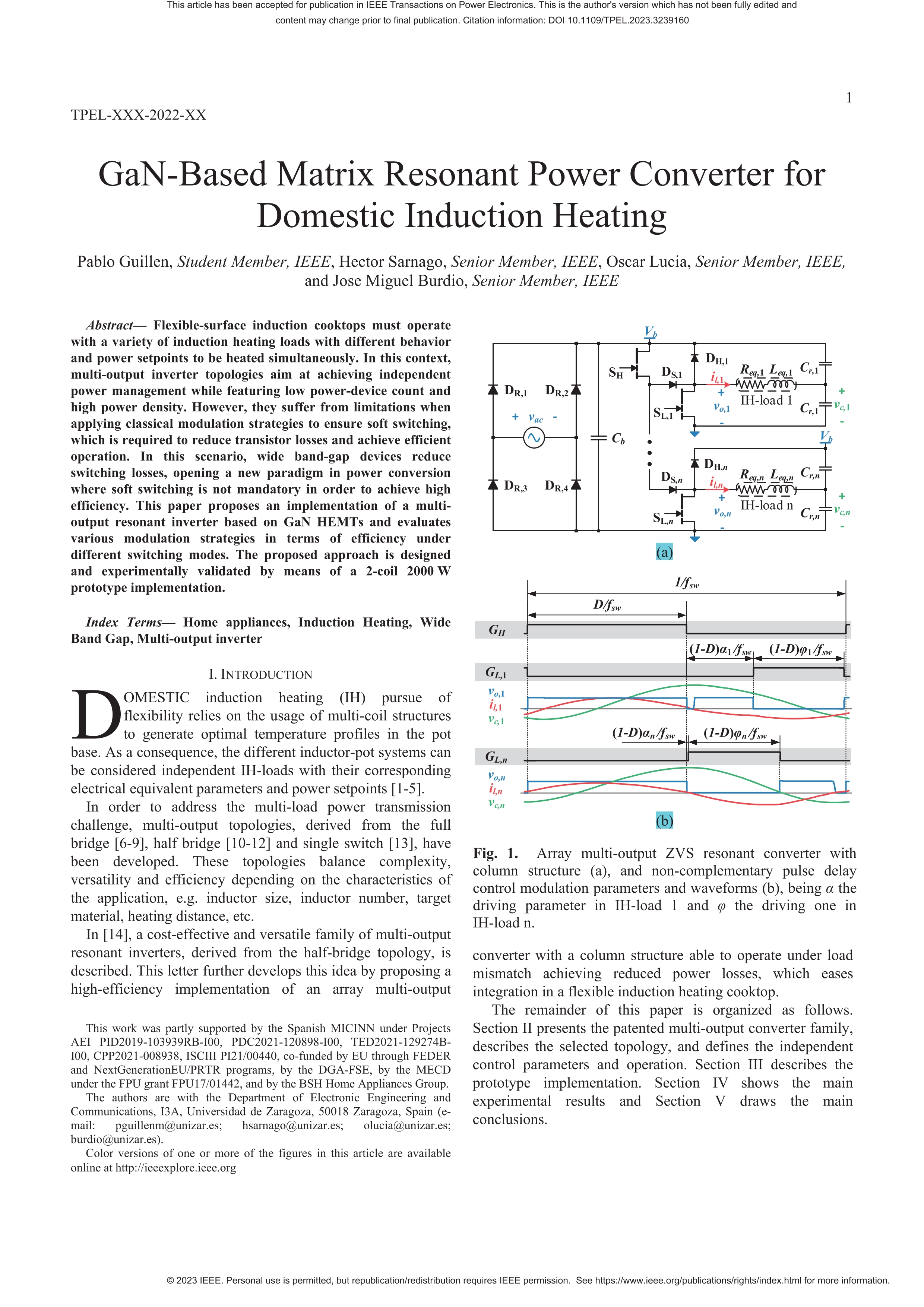

GaN-based matrix resonant power converter for domestic induction heating

Guillen, P. (Universidad de Zaragoza) ; Sarnago, H. (Universidad de Zaragoza) ; Lucía, O. (Universidad de Zaragoza) ; Burdio, J. M. (Universidad de Zaragoza)

Resumen: Flexible-surface induction cooktops must operate with a variety of induction heating loads with different behavior and power setpoints to be heated simultaneously. In this context, multi-output inverter topologies aim at achieving independent power management while featuring low power-device count and high power density. However, they suffer from limitations when applying classical modulation strategies to ensure soft switching, which is required to reduce transistor losses and achieve efficient operation. In this scenario, wide band-gap devices reduce switching losses, opening a new paradigm in power conversion where soft switching is not mandatory in order to achieve high efficiency. This paper proposes an implementation of a multi-output resonant inverter based on GaN HEMTs and evaluates various modulation strategies in terms of efficiency under different switching modes. The proposed approach is designed and experimentally validated by means of a 2-coil 2000 W prototype implementation.

Idioma: Inglés

DOI: 10.1109/TPEL.2023.3239160

Año: 2023

Publicado en: IEEE Transactions on Power Electronics 38, 6 (2023), 6769-6773
ISSN: 0885-8993

Factor impacto JCR: 6.6 (2023)

Categ. JCR: ENGINEERING, ELECTRICAL & ELECTRONIC rank: 39 / 353 = 0.11 (2023) - Q1 - T1

Factor impacto CITESCORE: 15.2 - Electrical and Electronic Engineering (Q1)

Factor impacto SCIMAGO: 3.644 - Electrical and Electronic Engineering (Q1)

Financiación: info:eu-repo/grantAgreement/EUR/AEI/CPP2021-008938
Financiación: info:eu-repo/grantAgreement/ES/AEI/PID2019-103939RB-I00
Financiación: info:eu-repo/grantAgreement/EUR/AEI/TED2021-129274B-I00
Financiación: info:eu-repo/grantAgreement/ES/ISCIII/PI21-00440
Financiación: info:eu-repo/grantAgreement/ES/MECD-DGA-FSE/FPU17-01442
Financiación: info:eu-repo/grantAgreement/ES/MICINN-AEI/PDC2021-120898-I00

Tipo y forma: Artículo (PostPrint)

Área (Departamento): Área Tecnología Electrónica (Dpto. Ingeniería Electrón.Com.)
