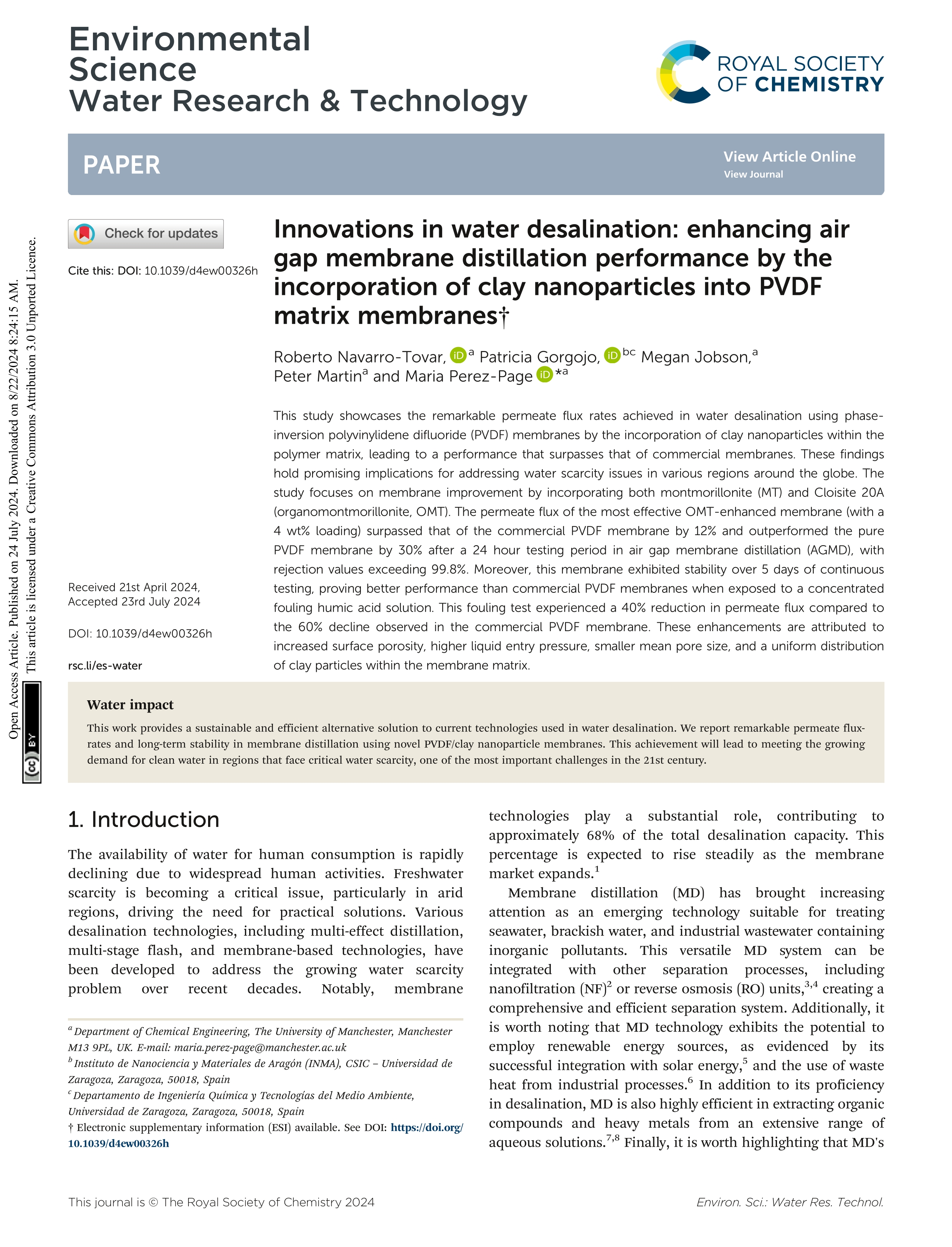

Innovations in water desalination: enhancing air gap membrane distillation performance by the incorporation of clay nanoparticles into PVDF matrix membranes

Navarro-Tovar, Roberto ; Gorgojo, Patricia (Universidad de Zaragoza) ; Jobson, Megan ; Martin, Peter ; Perez-Page, Maria

Resumen: This study showcases the remarkable permeate flux rates achieved in water desalination using phase-inversion polyvinylidene difluoride (PVDF) membranes by the incorporation of clay nanoparticles within the polymer matrix, leading to a performance that surpasses that of commercial membranes. These findings hold promising implications for addressing water scarcity issues in various regions around the globe. The study focuses on membrane improvement by incorporating both montmorillonite (MT) and Cloisite 20A (organomontmorillonite, OMT). The permeate flux of the most effective OMT-enhanced membrane (with a 4 wt% loading) surpassed that of the commercial PVDF membrane by 12% and outperformed the pure PVDF membrane by 30% after a 24 hour testing period in air gap membrane distillation (AGMD), with rejection values exceeding 99.8%. Moreover, this membrane exhibited stability over 5 days of continuous testing, proving better performance than commercial PVDF membranes when exposed to a concentrated fouling humic acid solution. This fouling test experienced a 40% reduction in permeate flux compared to the 60% decline observed in the commercial PVDF membrane. These enhancements are attributed to increased surface porosity, higher liquid entry pressure, smaller mean pore size, and a uniform distribution of clay particles within the membrane matrix.

Idioma: Inglés

DOI: 10.1039/d4ew00326h

Año: 2024

Publicado en: Environmental Science-Water Research & Technology 10 (2024), 2418-2431
ISSN: 2053-1400

Factor impacto JCR: 3.2 (2024)

Categ. JCR: ENVIRONMENTAL SCIENCES rank: 179 / 376 = 0.476 (2024) - Q2 - T2
Categ. JCR: WATER RESOURCES rank: 42 / 132 = 0.318 (2024) - Q2 - T1
Categ. JCR: ENGINEERING, ENVIRONMENTAL rank: 49 / 83 = 0.59 (2024) - Q3 - T2

Factor impacto CITESCORE: 6.3 - Water Science and Technology (Q1) - Environmental Engineering (Q2)

Factor impacto SCIMAGO: 0.875 - Water Science and Technology (Q1) - Environmental Engineering (Q1)

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Ingeniería Química (Dpto. Ing.Quím.Tecnol.Med.Amb.)
