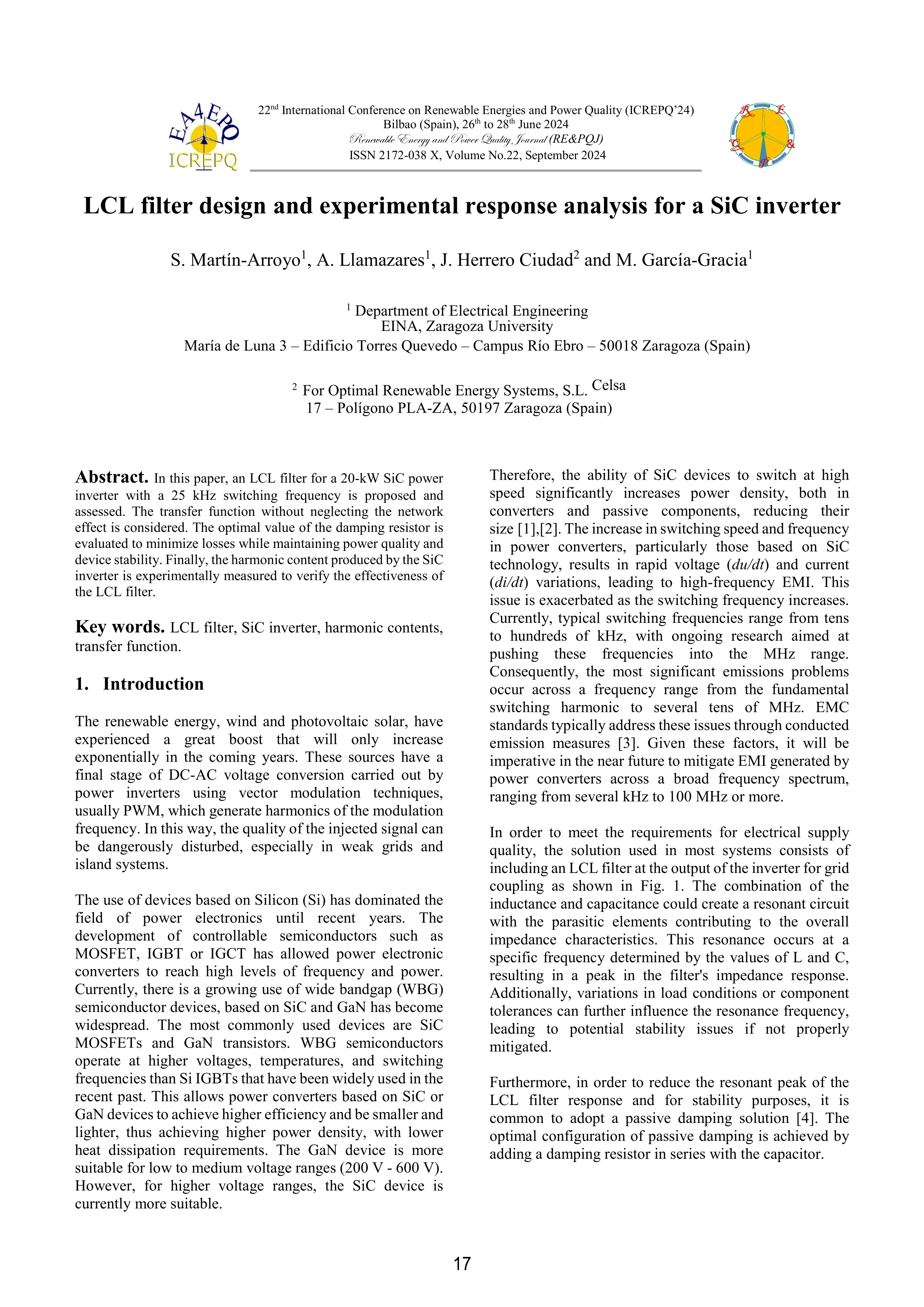

LCL filter design and experimental response analysis for a SiC inverter

Martín-Arroyo, S. (Universidad de Zaragoza) ; Llamazares, A. (Universidad de Zaragoza) ; Herrero Ciudad, J. ; García-Gracia, M. (Universidad de Zaragoza)

Resumen: In this paper, an LCL filter for a 20-kW SiC power inverter with a 25 kHz switching frequency is proposed and assessed. The transfer function without neglecting the network effect is considered. The optimal value of the damping resistor is evaluated to minimize losses while maintaining power quality and device stability. Finally, the harmonic content produced by the SiC inverter is experimentally measured to verify the effectiveness of the LCL filter.

Idioma: Inglés

DOI: 10.52152/4046

Año: 2024

Publicado en: Renewable Energy and Power Quality Journal 22, 6 (2024), 17-21
ISSN: 2172-038X

Factor impacto SCIMAGO: 0.167 - Electrical and Electronic Engineering (Q4) - Renewable Energy, Sustainability and the Environment (Q4) - Energy Engineering and Power Technology (Q4)

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Ingeniería Eléctrica (Dpto. Ingeniería Eléctrica)
