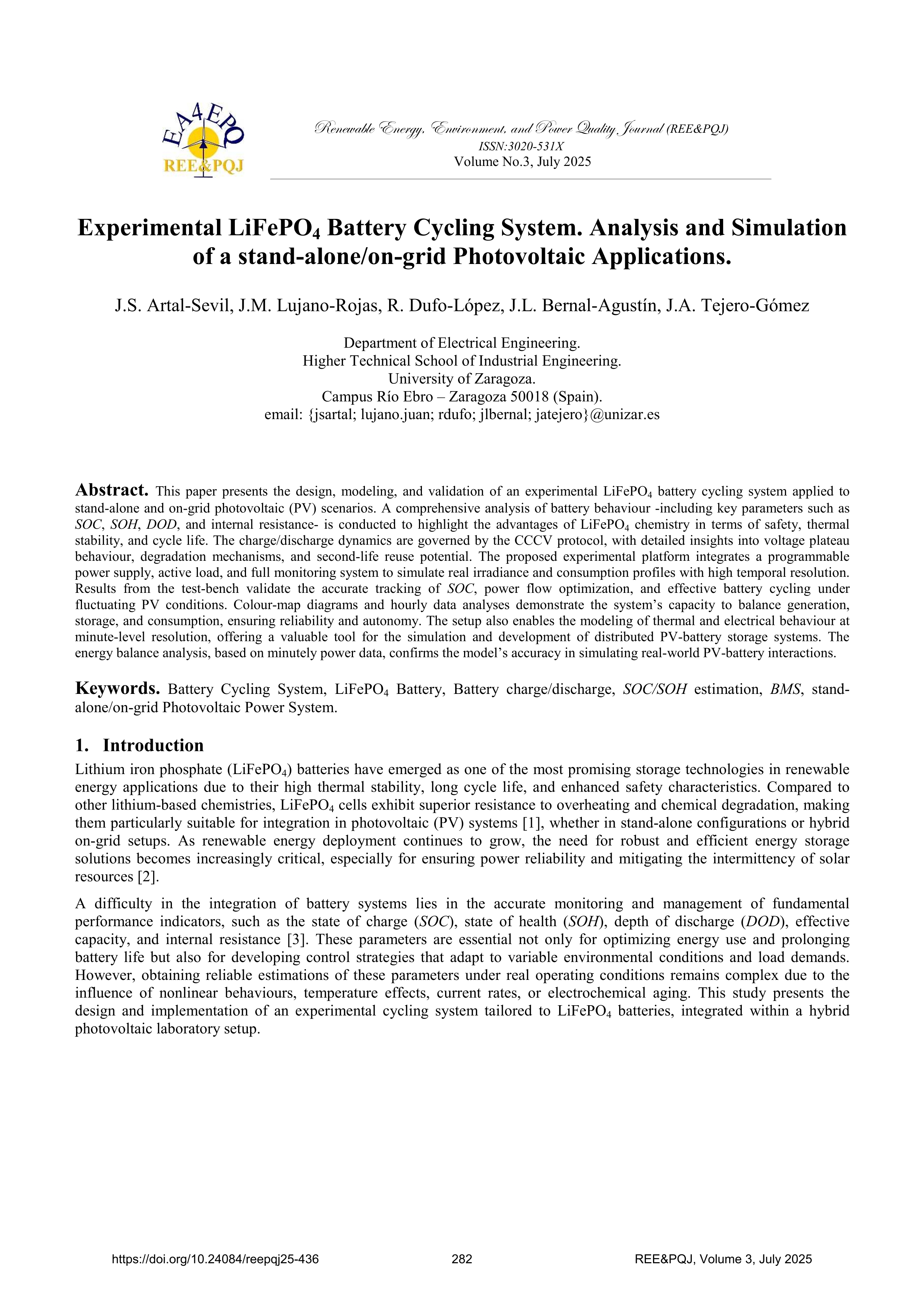

Experimental LiFePO4 Battery Cycling System. Analysis and Simulation of a stand-alone/on-grid Photovoltaic Applications

Artal-Sevil, Jesús S. (Universidad de Zaragoza) ; Lujano-Rojas, Juan M. (Universidad de Zaragoza) ; Dufo López, Rodolfo (Universidad de Zaragoza) ; Bernal-Agustín, José L. (Universidad de Zaragoza) ; Tejero-Gómez, Juan A. (Universidad de Zaragoza)

Resumen: This paper presents the design, modeling, and validation of an experimental LiFePO₄ battery cycling system applied to stand-alone and on-grid photovoltaic (PV) scenarios. A comprehensive analysis of battery behaviour -including key parameters such as SOC, SOH, DOD, and internal resistance- is conducted to highlight the advantages of LiFePO₄ chemistry in terms of safety, thermal stability, and cycle life. The charge/discharge dynamics are governed by the CCCV protocol, with detailed insights into voltage plateau behaviour, degradation mechanisms, and second-life reuse potential. The proposed experimental platform integrates a programmable power supply, active load, and full monitoring system to simulate real irradiance and consumption profiles with high temporal resolution. Results from the test-bench validate the accurate tracking of SOC, power flow optimization, and effective battery cycling under fluctuating PV conditions. Colour-map diagrams and hourly data analyses demonstrate the system’s capacity to balance generation, storage, and consumption, ensuring reliability and autonomy. The setup also enables the modeling of thermal and electrical behaviour at minute-level resolution, offering a valuable tool for the simulation and development of distributed PV-battery storage systems. The energy balance analysis, based on minutely power data, confirms the model’s accuracy in simulating real-world PV-battery interactions.

Idioma: Inglés

DOI: 10.24084/reepqj25-436

Año: 2025

Publicado en: Renewable Energies, Environment & Power Quality Journal 3 (2025), 282-290
ISSN: 3020-531X

Financiación: info:eu-repo/grantAgreement/ES/AEI/PID2021-123172OB-I00

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Ingeniería Eléctrica (Dpto. Ingeniería Eléctrica)
Área (Departamento): Área Técnica. Lab. y Talleres (Dpto. Ingeniería Eléctrica)
