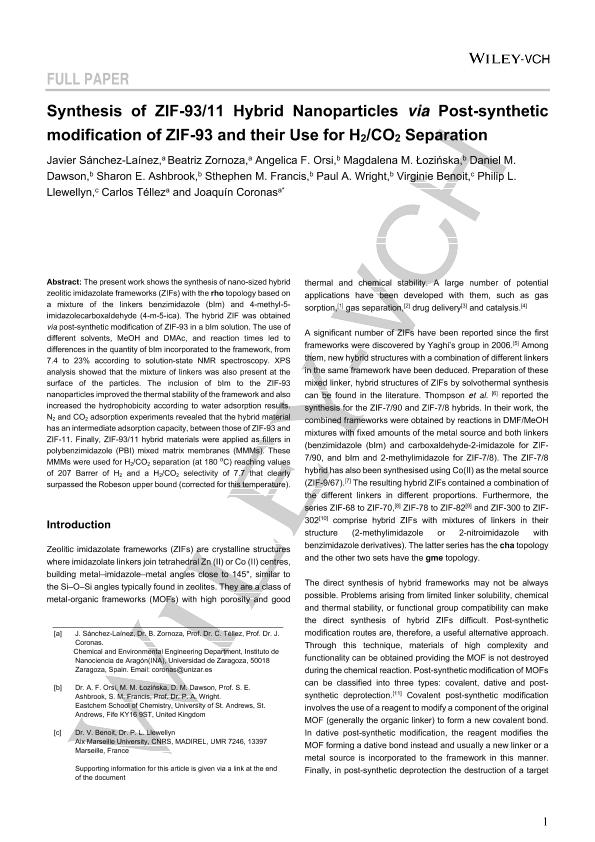

Synthesis of ZIF-93/11 Hybrid Nanoparticles via Post-Synthetic Modification of ZIF-93 and Their Use for H2/CO2 Separation

Sánchez-Laínez, J. (Universidad de Zaragoza) ; Zornoza, B. (Universidad de Zaragoza) ; Orsi, A.F. ; Lozinska, M.M. ; Dawson, D.M. ; Ashbrook, S.E. ; Francis, S.M. ; Wright, P.A. ; Benoit, V. ; Llewellyn, P.L. ; Téllez, C. (Universidad de Zaragoza) ; Coronas, J. (Universidad de Zaragoza)

Resumen: The present work shows the synthesis of nano-sized hybrid zeolitic imidazolate frameworks (ZIFs) with the rho topology based on a mixture of the linkers benzimidazole (bIm) and 4-methyl-5-imidazolecarboxaldehyde (4-m-5-ica). The hybrid ZIF was obtained by post-synthetic modification of ZIF-93 in a bIm solution. The use of different solvents, MeOH and N, N-dimethylacetamide (DMAc), and reaction times led to differences in the quantity of bIm incorporated to the framework, from 7.4 to 23 % according to solution-state NMR spectroscopy. XPS analysis showed that the mixture of linkers was also present at the surface of the particles. The inclusion of bIm to the ZIF-93 nanoparticles improved the thermal stability of the framework and also increased the hydrophobicity according to water adsorption results. N2 and CO2 adsorption experiments revealed that the hybrid material has an intermediate adsorption capacity, between those of ZIF-93 and ZIF-11. Finally, ZIF-93/11 hybrid materials were applied as fillers in polybenzimidazole (PBI) mixed matrix membranes (MMMs). These MMMs were used for H2/CO2 separation (at 180 °C) reaching values of 207 Barrer of H2 and a H2/CO2 selectivity of 7.7 that clearly surpassed the Robeson upper bound (corrected for this temperature).

Idioma: Inglés

DOI: 10.1002/chem.201802124

Año: 2018

Publicado en: Chemistry - A European Journal 24, 43 (2018), 11211-11219
ISSN: 0947-6539

Factor impacto JCR: 5.16 (2018)

Categ. JCR: CHEMISTRY, MULTIDISCIPLINARY rank: 36 / 172 = 0.209 (2018) - Q1 - T1

Factor impacto SCIMAGO: 1.842 - Catalysis (Q1) - Organic Chemistry (Q1) - Chemistry (miscellaneous) (Q1)

Financiación: info:eu-repo/grantAgreement/ES/DGA/T05
Financiación: info:eu-repo/grantAgreement/EC/FP7/608490/EU/Energy efficient MOF-based Mixed Matrix Membranes for CO2 Capture/M4CO2
Financiación: info:eu-repo/grantAgreement/ES/MINECO/MAT2016-77290-R

Tipo y forma: Artículo (PostPrint)

Área (Departamento): Área Ingeniería Química (Dpto. Ing.Quím.Tecnol.Med.Amb.)
