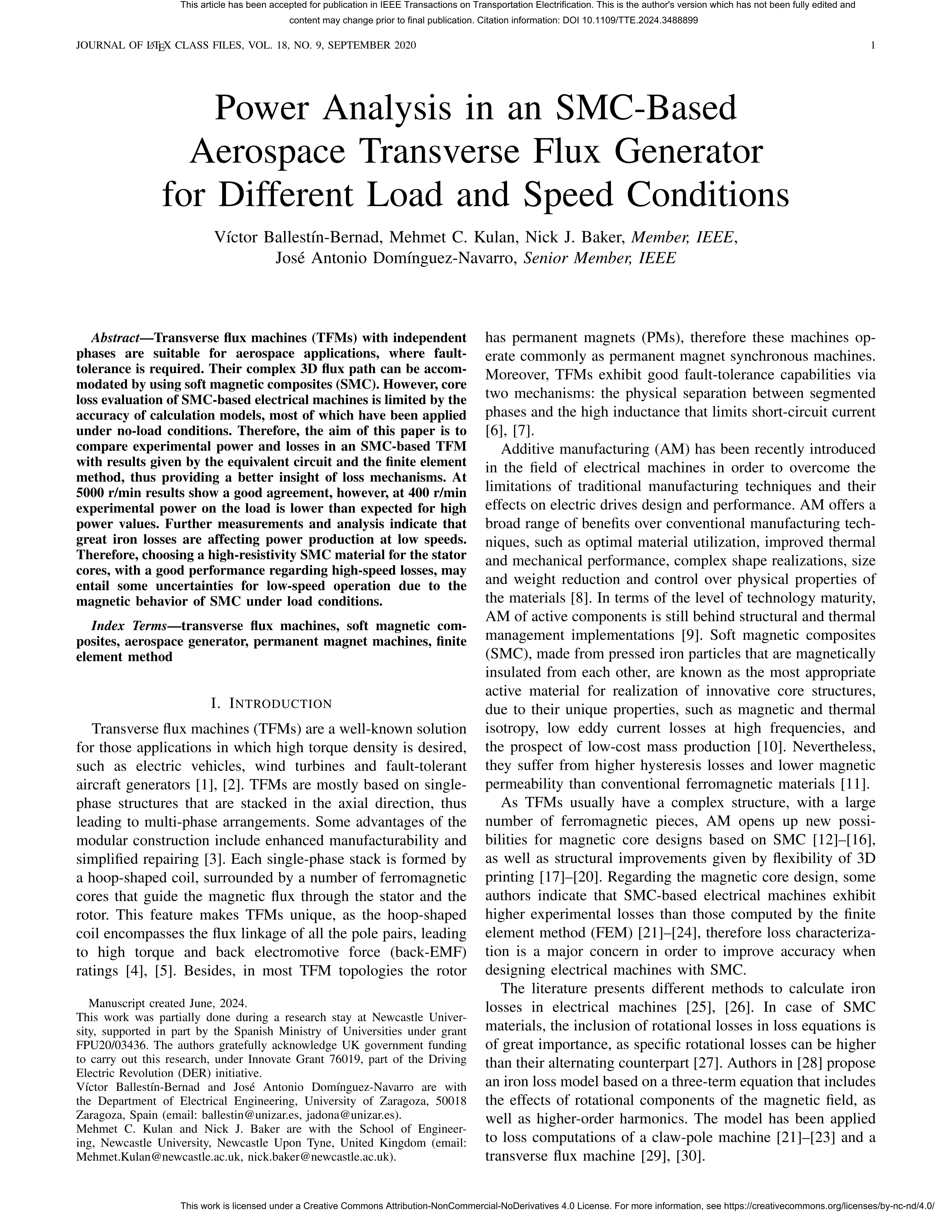

Power Analysis in an SMC-Based Aerospace Transverse Flux Generator for Different Load and Speed Conditions

Ballestín-Bernad, Víctor (Universidad de Zaragoza) ; Kulan, Mehmet C. ; Baker, Nick J. ; Domínguez-Navarro, José Antonio (Universidad de Zaragoza)

Resumen: Transverse flux machines (TFMs) with independent phases are suitable for aerospace applications, where fault-tolerance is required. Their complex 3D flux path can be accommodated by using soft magnetic composites (SMC). However, core loss evaluation of SMC-based electrical machines is limited by the accuracy of calculation models, most of which have been applied under no-load conditions. Therefore, the aim of this paper is to compare experimental power and losses in an SMC-based TFM with results given by the equivalent circuit and the finite element method, thus providing a better insight of loss mechanisms. At 5000 r/min results show a good agreement, however, at 400 r/min experimental power on the load is lower than expected for high power values. Further measurements and analysis indicate that great iron losses are affecting power production at low speeds. Therefore, choosing a high-resistivity SMC material for the stator cores, with a good performance regarding high-speed losses, may entail some uncertainties for low-speed operation due to the magnetic behavior of SMC under load conditions.

Idioma: Inglés

DOI: 10.1109/TTE.2024.3488899

Año: 2024

Publicado en: IEEE transactions on transportation electrification 11, 2 (2024), 5700-5708
ISSN: 2577-4212

Factor impacto JCR: 8.3 (2024)

Categ. JCR: TRANSPORTATION SCIENCE & TECHNOLOGY rank: 8 / 77 = 0.104 (2024) - Q1 - T1
Categ. JCR: ENGINEERING, ELECTRICAL & ELECTRONIC rank: 27 / 366 = 0.074 (2024) - Q1 - T1

Factor impacto CITESCORE: 12.5 - Electrical and Electronic Engineering (Q1) - Automotive Engineering (Q1) - Transportation (Q1) - Energy Engineering and Power Technology (Q1)

Factor impacto SCIMAGO: 2.622 - Automotive Engineering (Q1) - Transportation (Q1) - Energy Engineering and Power Technology (Q1) - Electrical and Electronic Engineering (Q1)

Financiación: info:eu-repo/grantAgreement/ES/MCIU/FPU20/03436

Tipo y forma: Article (Published version)

Área (Departamento): Área Ingeniería Eléctrica (Dpto. Ingeniería Eléctrica)
