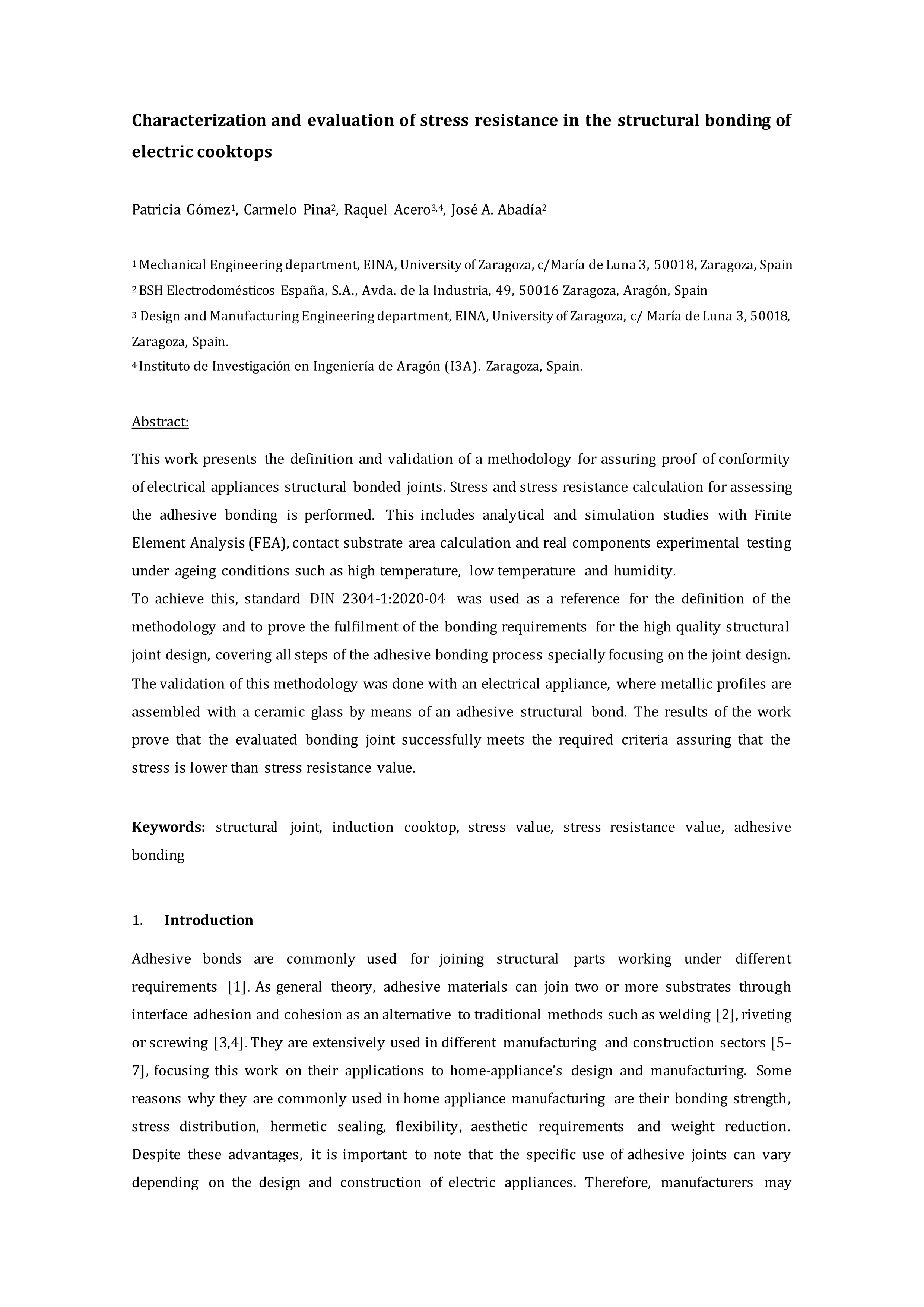

Characterization and evaluation of stress resistance in the structural bonding of electric cooktops

Gómez, Patricia (Universidad de Zaragoza) ; Pina, Carmelo (Universidad de Zaragoza) ; Acero, Raquel (Universidad de Zaragoza) ; Abadía, José A. (Universidad de Zaragoza)

Resumen: This work presents the definition and validation of a methodology for assuring proof of conformity of electrical appliances structural bonded joints. Stress and stress resistance calculation for assessing the adhesive bonding is performed. This includes analytical and simulation studies with Finite Element Analysis (FEA), contact substrate area calculation and real components experimental testing under ageing conditions such as high temperature, low temperature and humidity. To achieve this, standard DIN 2304-1:2020-04 was used as a reference for the definition of the methodology and to prove the fulfilment of the bonding requirements for the high quality structural joint design, covering all steps of the adhesive bonding process specially focusing on the joint design. The validation of this methodology was done with an electrical appliance, where metallic profiles are assembled with a ceramic glass by means of an adhesive structural bond. The results of the work prove that the evaluated bonding joint successfully meets the required criteria assuring that the stress is lower than stress resistance value.

Idioma: Inglés

DOI: 10.1016/j.ijadhadh.2023.103568

Año: 2024

Publicado en: INTERNATIONAL JOURNAL OF ADHESION AND ADHESIVES 129 (2024), 103568 [10 pp.]
ISSN: 0143-7496

Tipo y forma: Article (PostPrint)

Área (Departamento): Área Ingeniería Mecánica (Dpto. Ingeniería Mecánica)
Área (Departamento): Área Expresión Gráfica en Ing. (Dpto. Ingeniería Diseño Fabri.)
Área (Departamento): Área Ing. Procesos Fabricación (Dpto. Ingeniería Diseño Fabri.)
Área (Departamento): Área Mec.Med.Cont. y Teor.Est. (Dpto. Ingeniería Mecánica)
