Effect of B-site doping on the thermoelectric performances of Ca0.97Y0.01 La0.01 Yb0.01Mn1-2xNbxMoxO3 thermoelectric ceramics

Amirkhizi, P. ; Torres, M.A. (Universidad de Zaragoza) ; Dura, O.J. ; Sotelo, A. (Universidad de Zaragoza) ; Madre, M.A. (Universidad de Zaragoza) ; Kovalevsky, A. ; Rasekh, Sh.

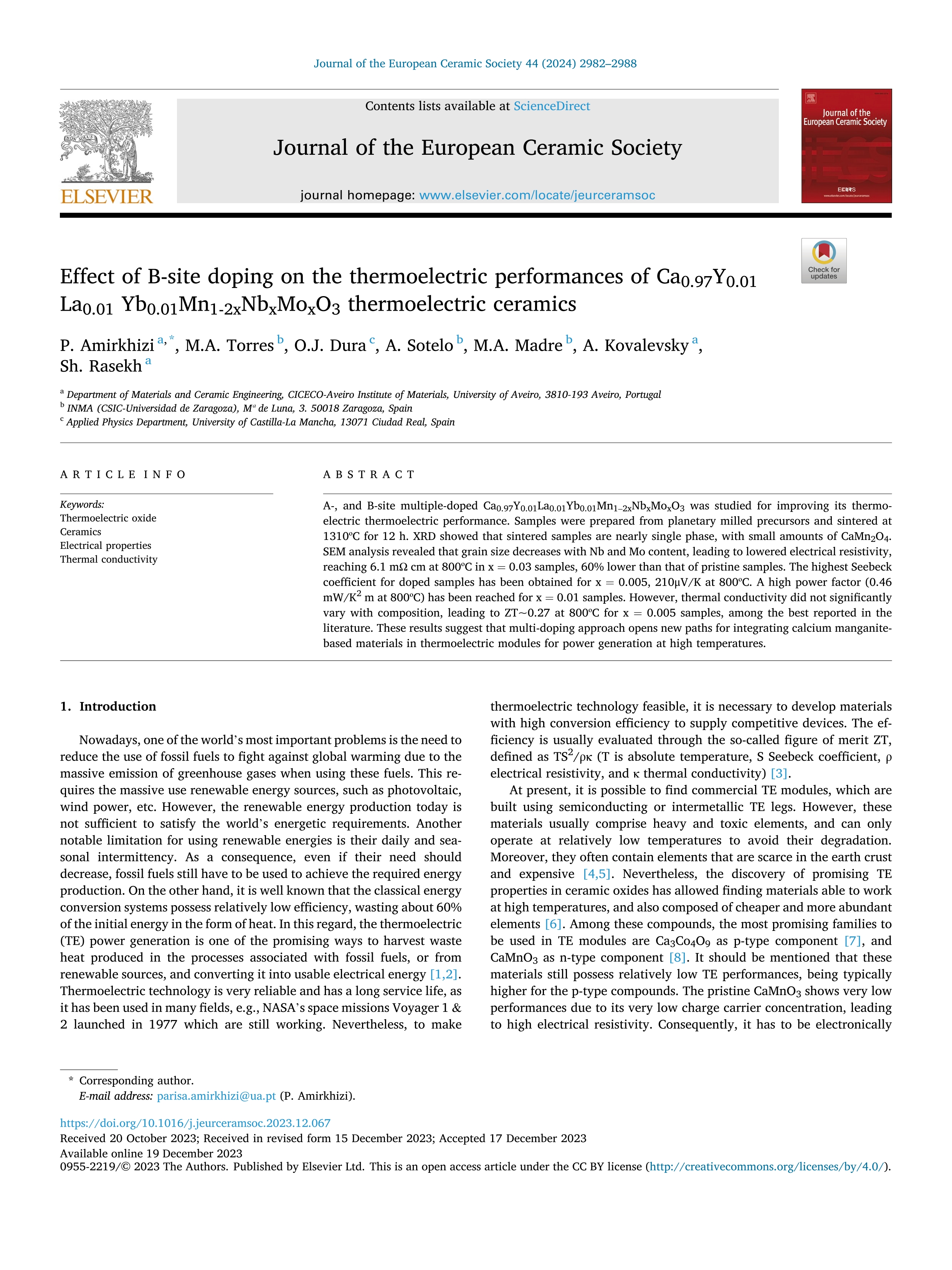

Resumen: A-, and B-site multiple-doped Ca0.97Y0.01La0.01Yb0.01Mn1–2xNbxMoxO3 was studied for improving its thermoelectric thermoelectric performance. Samples were prepared from planetary milled precursors and sintered at 1310ºC for 12 h. XRD showed that sintered samples are nearly single phase, with small amounts of CaMn2O4. SEM analysis revealed that grain size decreases with Nb and Mo content, leading to lowered electrical resistivity, reaching 6.1 mΩ cm at 800ºC in x = 0.03 samples, 60% lower than that of pristine samples. The highest Seebeck coefficient for doped samples has been obtained for x = 0.005, 210μV/K at 800ºC. A high power factor (0.46 mW/K2 m at 800ºC) has been reached for x = 0.01 samples. However, thermal conductivity did not significantly vary with composition, leading to ZT∼0.27 at 800ºC for x = 0.005 samples, among the best reported in the literature. These results suggest that multi-doping approach opens new paths for integrating calcium manganite-based materials in thermoelectric modules for power generation at high temperatures.

Idioma: Inglés

Año: 2024

Publicado en: Journal of the European Ceramic Society 44, 5 (2024), 2982-2988
ISSN: 0955-2219

Factor impacto JCR: 6.2 (2024)

Categ. JCR: MATERIALS SCIENCE, CERAMICS rank: 2 / 34 = 0.059 (2024) - Q1 - T1

Factor impacto CITESCORE: 11.5 - Ceramics and Composites (Q1) - Materials Chemistry (Q1)

Factor impacto SCIMAGO: 1.3 - Materials Chemistry (Q1) - Ceramics and Composites (Q1)

Financiación: info:eu-repo/grantAgreement/ES/DGA/T54-23R
Financiación: info:eu-repo/grantAgreement/ES/UZ/JIUZ-2022-IAR-09

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Expresión Gráfica en Ing. (Dpto. Ingeniería Diseño Fabri.)
Área (Departamento): Área Cienc.Mater. Ingen.Metal. (Dpto. Ciencia Tecnol.Mater.Fl.)
