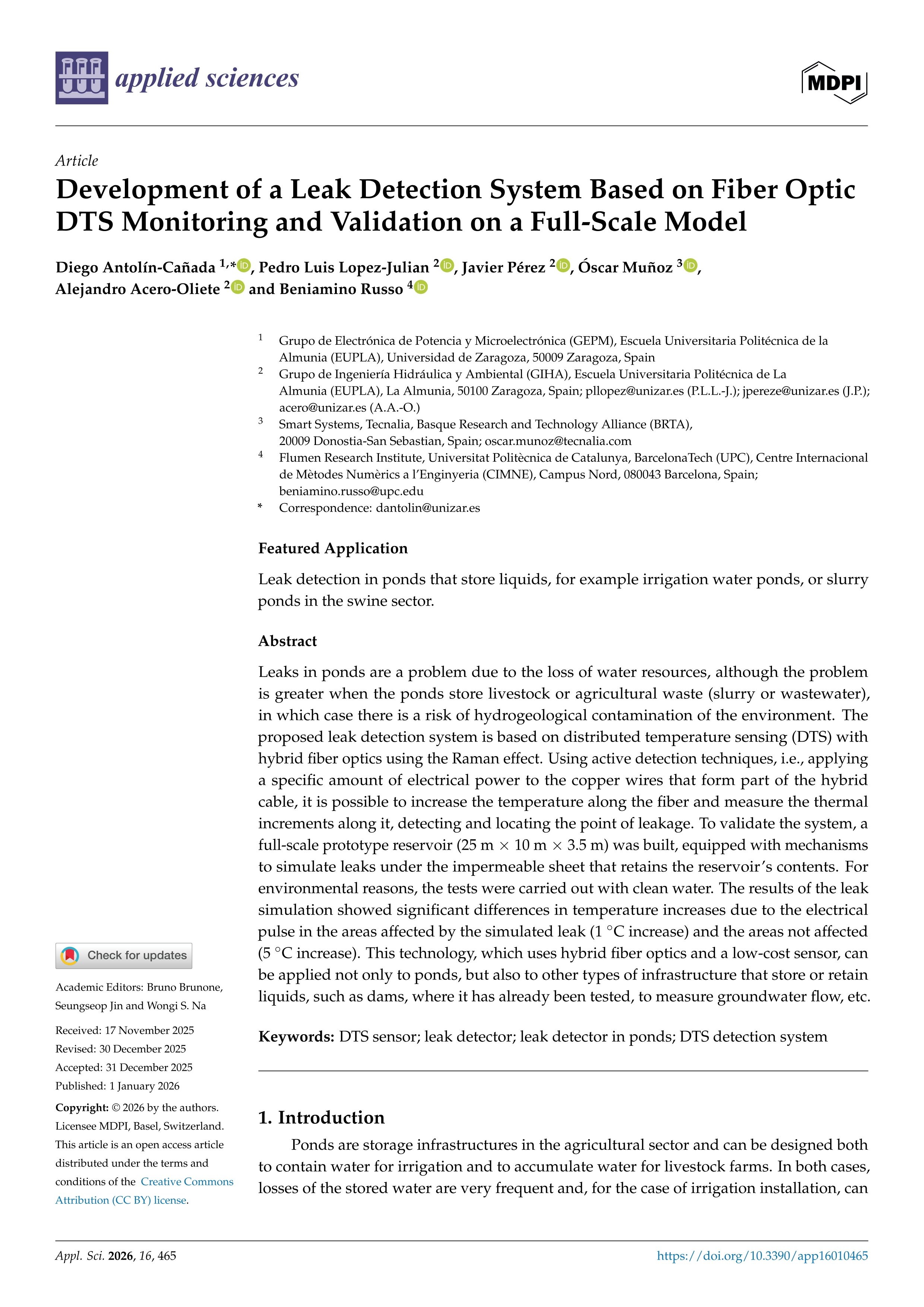

Development of a Leak Detection System Based on Fiber Optic DTS Monitoring and Validation on a Full-Scale Model

Antolín-Cañada, Diego ; López-Julián, Pedro Luis (Universidad de Zaragoza) ; Pérez, Javier ; Muñoz, Óscar ; Acero-Oliete, Alejandro ; Russo, Beniamino

Resumen: Leaks in ponds are a problem due to the loss of water resources, although the problem is greater when the ponds store livestock or agricultural waste (slurry or wastewater), in which case there is a risk of hydrogeological contamination of the environment. The proposed leak detection system is based on distributed temperature sensing (DTS) with hybrid fiber optics using the Raman effect. Using active detection techniques, i.e., applying a specific amount of electrical power to the copper wires that form part of the hybrid cable, it is possible to increase the temperature along the fiber and measure the thermal increments along it, detecting and locating the point of leakage. To validate the system, a full-scale prototype reservoir (25 m × 10 m × 3.5 m) was built, equipped with mechanisms to simulate leaks under the impermeable sheet that retains the reservoir’s contents. For environmental reasons, the tests were carried out with clean water. The results of the leak simulation showed significant differences in temperature increases due to the electrical pulse in the areas affected by the simulated leak (1 °C increase) and the areas not affected (5 °C increase). This technology, which uses hybrid fiber optics and a low-cost sensor, can be applied not only to ponds, but also to other types of infrastructure that store or retain liquids, such as dams, where it has already been tested, to measure groundwater flow, etc.

Idioma: Inglés

DOI: 10.3390/app16010465

Año: 2026

Publicado en: Applied Sciences (Switzerland) 16, 465 (2026), 21
ISSN: 2076-3417

Financiación: info:eu-repo/grantAgreement/ES/MINECO/AEI-010500-2022b-320

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Geodinámica Externa (Dpto. Ciencias de la Tierra)
