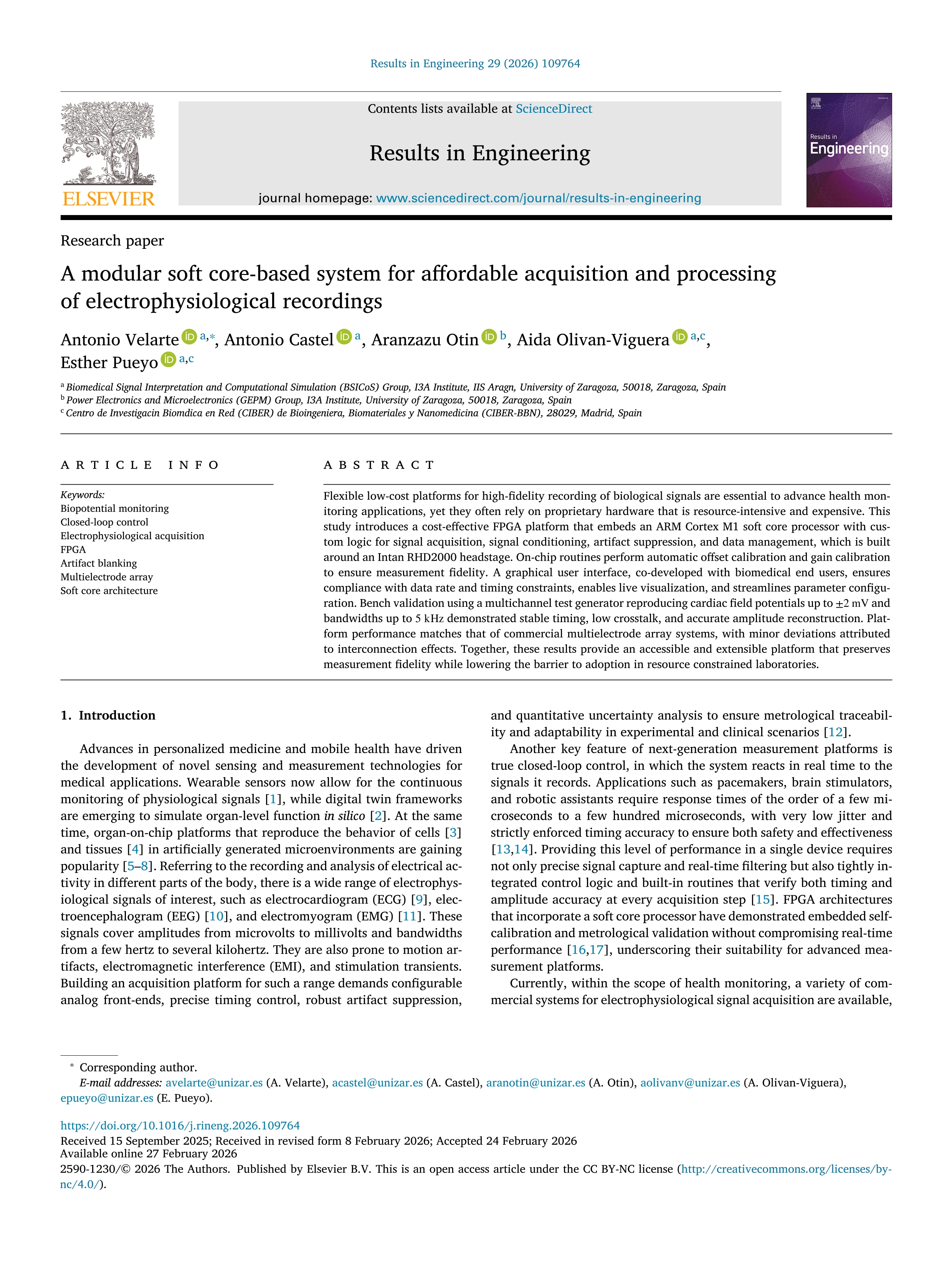

A modular soft core-based system for affordable acquisition and processing of electrophysiological recordings

Velarte, Antonio (Universidad de Zaragoza) ; Castel, Antonio ; Otin, Aranzazu (Universidad de Zaragoza) ; Olivan-Viguera, Aida ; Pueyo, Esther (Universidad de Zaragoza)

Resumen: Flexible low-cost platforms for high-fidelity recording of biological signals are essential to advance health monitoring applications, yet they often rely on proprietary hardware that is resource-intensive and expensive. This study introduces a cost-effective FPGA platform that embeds an ARM Cortex M1 soft core processor with custom logic for signal acquisition, signal conditioning, artifact suppression, and data management, which is built around an Intan RHD2000 headstage. On-chip routines perform automatic offset calibration and gain calibration to ensure measurement fidelity. A graphical user interface, co-developed with biomedical end users, ensures compliance with data rate and timing constraints, enables live visualization, and streamlines parameter configuration. Bench validation using a multichannel test generator reproducing cardiac field potentials up to  ± 2 mV and bandwidths up to 5 kHz demonstrated stable timing, low crosstalk, and accurate amplitude reconstruction. Platform performance matches that of commercial multielectrode array systems, with minor deviations attributed to interconnection effects. Together, these results provide an accessible and extensible platform that preserves measurement fidelity while lowering the barrier to adoption in resource constrained laboratories.

Idioma: Inglés

DOI: 10.1016/j.rineng.2026.109764

Año: 2026

Publicado en: Results in Engineering 29 (2026), 109764 [11 pp.]
ISSN: 2590-1230

Financiación: info:eu-repo/grantAgreement/ES/DGA/LMP 94-21
Financiación: info:eu-repo/grantAgreement/ES/DGA/T23-23R
Financiación: info:eu-repo/grantAgreement/ES/MICINN/PID2022-140556OB-I00
Financiación: info:eu-repo/grantAgreement/EUR/MICINN/TED2021-130459B-I00

Tipo y forma: Artículo (Versión definitiva)

Área (Departamento): Área Tecnología Electrónica (Dpto. Ingeniería Electrón.Com.)
Área (Departamento): Área Teoría Señal y Comunicac. (Dpto. Ingeniería Electrón.Com.)
